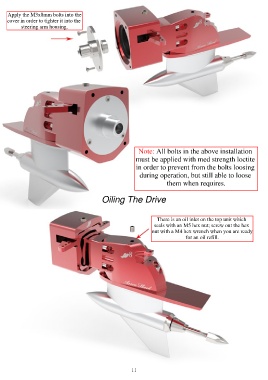

Apply the M3x8mm bolts into the
cover in order to tighter it into the
steering arm housing.

Note: All bolts in the above installation
must be applied with med strength loctite

in order to prevent from the bolts loosing
during operation, but still able to loose
them when requires.

Oiling The Drive

There is an oil inlet on the top unit which
seals with an M5 hex nut; screw out the hex
nut with a M4 hex wrench when you are ready
for an oil refill.

Congratulations! Your Installation Is Completed!
