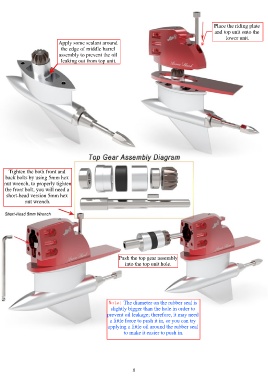

Place the riding plate
and top unit onto the
lower unit.
Apply some sealant around
the edge of middle barrel
assembly to prevent the oil
leaking out from top unit.

Tighten the both front and
back bolts by using 5mm hex
nut wrench, to properly tighten
the front bolt, you will need a
short-head version 5mm hex
nut wrench.

Push the top gear assembly
into the top unit hole.

Note: The diameter on the rubber seal is
slightly bigger than the hole in order to
prevent oil leakage; therefore, it may need
a little force to push it in, or you can try
applying a little oil around the rubber seal
to make it easier to push in.
