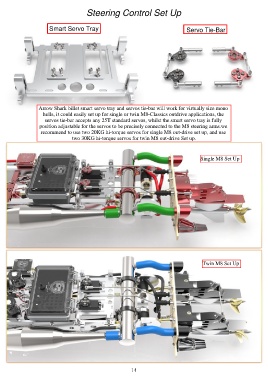

Steering Control Set Up

Smart Servo Tray Servo Tie-Bar

Arrow Shark billet smart servo tray and servos tie-bar will work for virtually size mono
hulls, it could easily set up for single or twin M8-Classics outdrive applications, the
servos tie-bar accepts any 25T standard servos, whilst the smart servo tray is fully
position adjustable for the servos to be precisely connected to the M8 steering arms.we
recommend to use two 20KG hi-torque servos for single M8 out-drive set up, and use
two 30KG hi-torque servos for twin M8 out-drive Set up.

Single M8 Set Up

Twin M8 Set Up

14
