| [Manufacturer] | Arrow Shark |
| [Product Version] | V2 Servo Tie-Bar |
| [Product Weight] | 35 Grams |

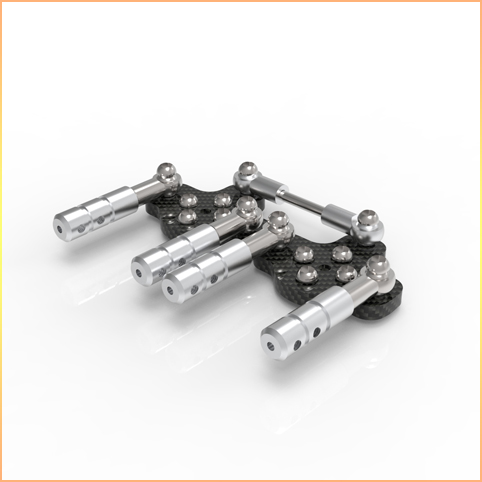

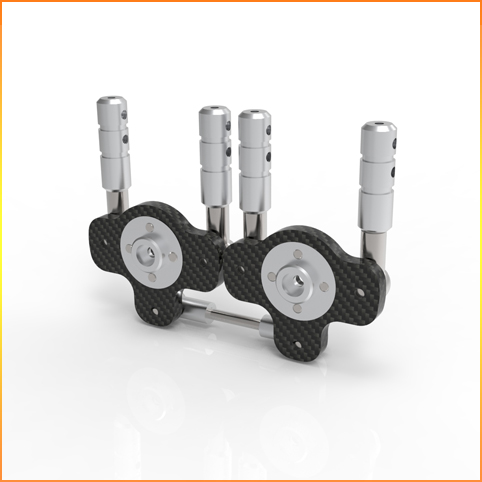

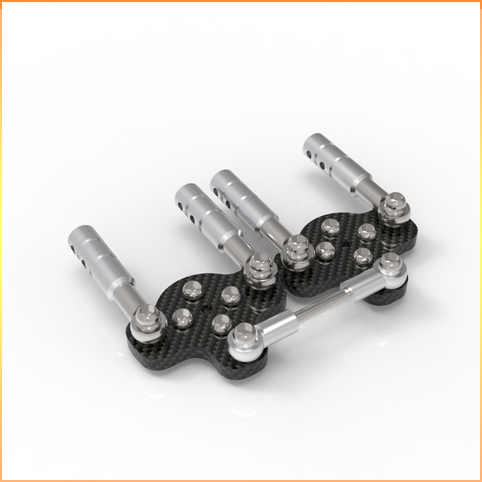

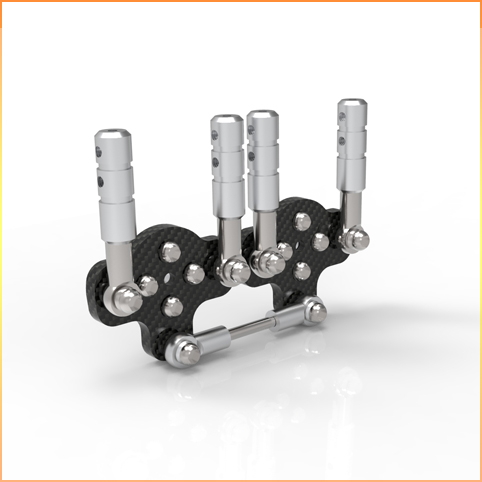

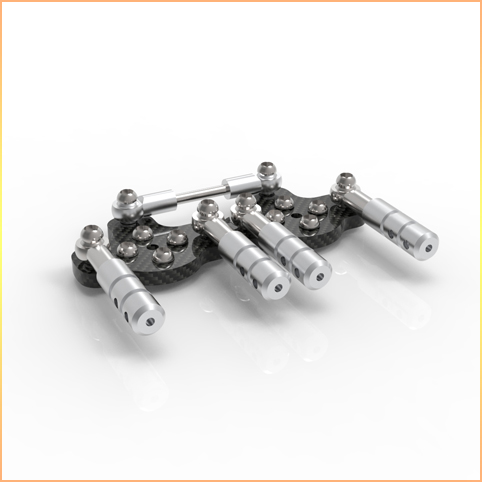

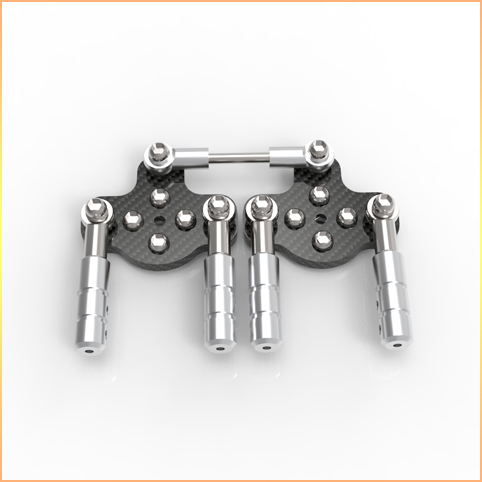

| [Brief Description] | This V2-Servo tie-bar is specially designed to work with Twin M8-Collector edition outdrive set up, it accepts four steering cables from twin M8 our drives to make the turning with more power and effective than never before.
This billet servo linkage Tie-Bar is designed to accept two 25T servos in standard size, the Tie-Bar is billet construction and designed with separated carbon fiber rotating plates, the bottom round plate connects to the 25T output shaft from the servo, whilst the top rotating arm plate secured to the bottom plate with tiny bolts, and it will allow 3 degrees on both left and right adjustment in order to fine tune the carbon fiber plate angle to make it 100% centered the plate with the servos for the accurate steering control, the top rotating plate has flat design that help to maximize the steering angle, the space between two servos can be easy adjusted by simply screw in or out the connecting rod from the ball joint linkage connectors. |

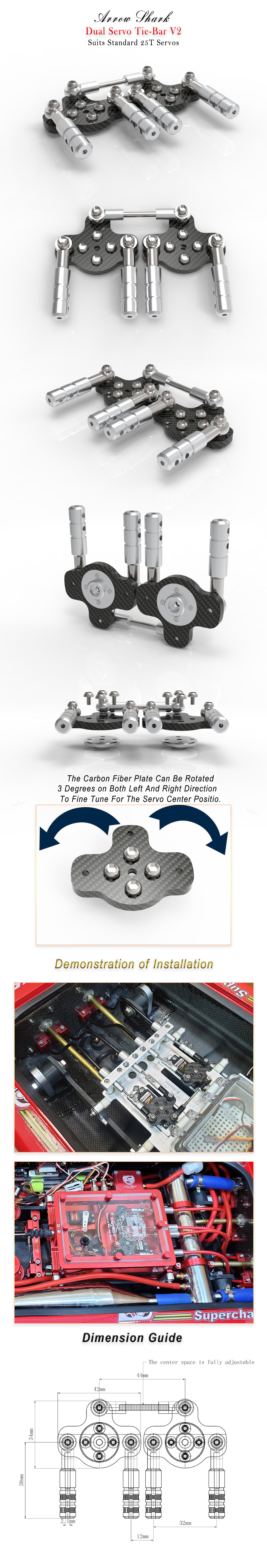

| [Product Dimension] | Please check the dimension pictures above for the detail. |
