| [Manufacturer] | Arrow Shark |
| [Product Version] | Ultra-Jet Pro-Kit Hi-Performance Package |

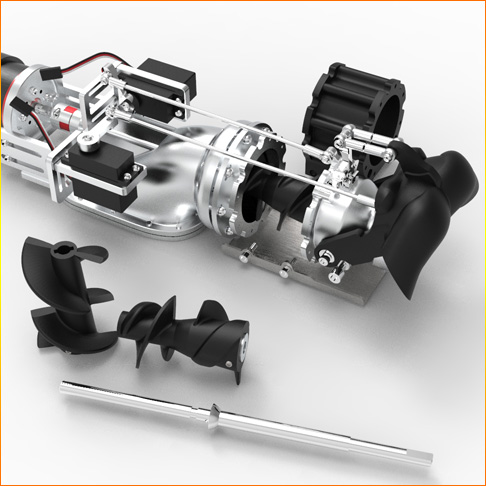

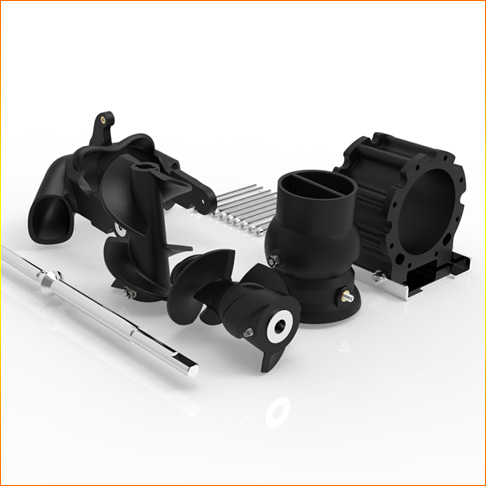

| [Brief Description] | This Pro-Kit package is specially designed to work with Arrow Shark Ultra-Jet to maximize its performance, the kit is constructed and manufactured using the latest 3D printing technology and carbon fiber composite materials, making it both high strength and lightweight.

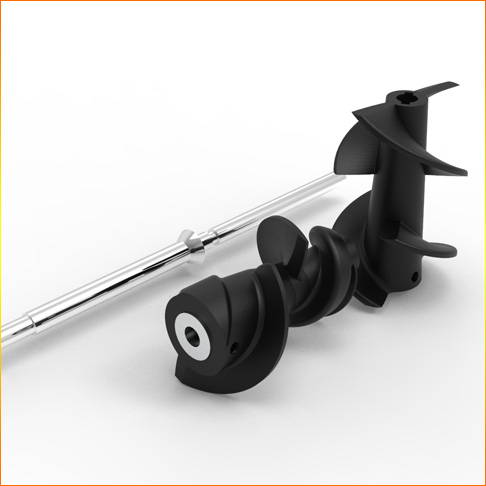

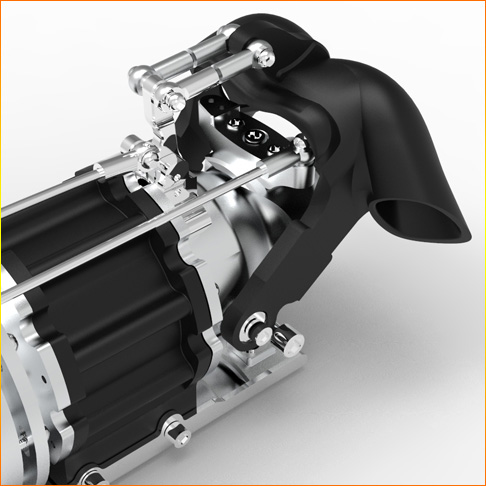

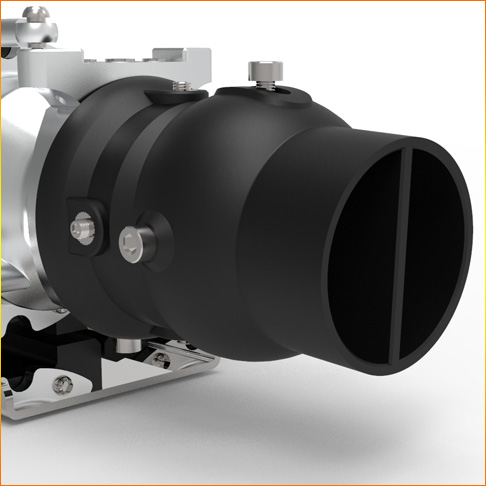

The exclusive design of the Booster-X allows you to manually adjust the thrust angles, enabling the fine-tuning of the center of gravity (CG) for optimal performance, typically, the CG is changed when using a different power-system and normally the more powerful motor results position the CG closer to the bow, without proper CG adjustment, the boat will exhibit excessive bow lift or oscillation while in operation. In this case, instead of adding Unnecessary counterbalance weights to the boat, the booster-X nozzle can simply be lowered a few degrees to stabilize the boat. If the boat is more difficult to plane when using a less powerful motor, similarly, the nozzle can be raised until the desired performance is achieved. With proper thrust angle adjustment, the maneuverability of the boat will also be improved, making precise turns and high speed operations easier in various water conditions. The kit includes two twin force impellers, one designed for high revolution motors, and the other for high torque motors, both impellers have a two-stage boost design that increases pressure inside the extension housing to produce higher thrust, which enables faster acceleration and higher speeds. The smart design of detachable steel ride-plate below the extension housing is also a great auxiliary component to help maintain an optimal running attitude, the ride-plate angle can be adjusted up to 3 degrees in both directions, allowing for improved stability, and reduces the risk of capsizing or loss of control in rough waters. This Pro-kit works for both the gas power and electric power, it comes with everything you need to set up your Ultra-Jet drive in two modes, the performance mode and reversed function mode, the reversed function mode comes with a fully scaled appearance of our Pro-version reversed bucket to enhance your Ultra-Jet drive into next level for both performance and appearance. Note: When operating the reversed bucket up and down, make sure the steering nozzle will stay in the center position during the movement of the reversed bucket, otherwise, the steering arm on the nozzle will interfering with it’s movement. |
