| [Manufacturer] | Arrow Shark |

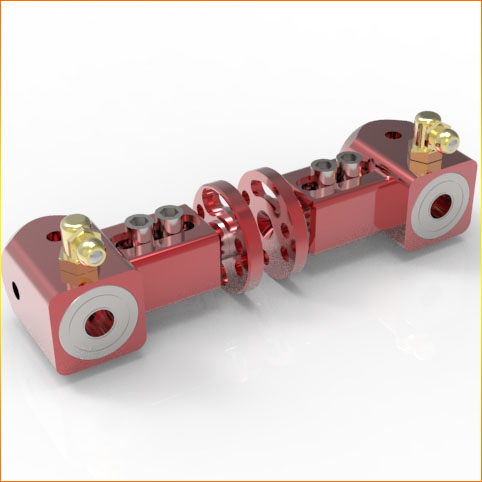

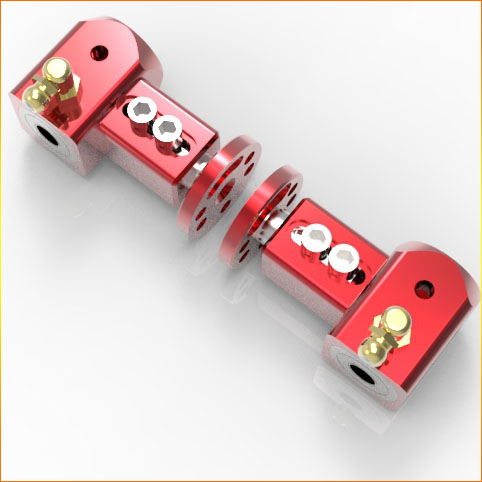

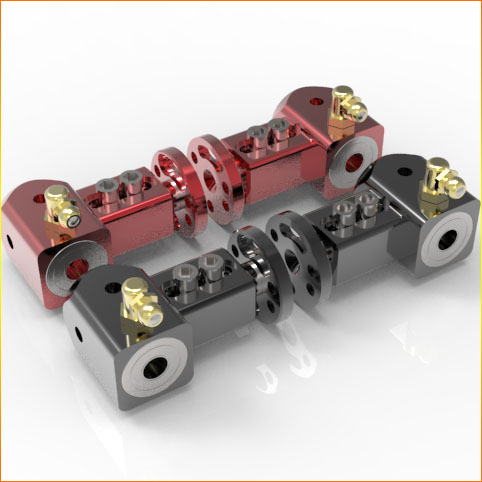

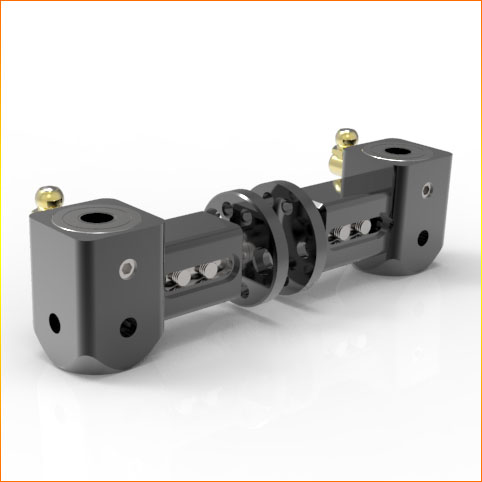

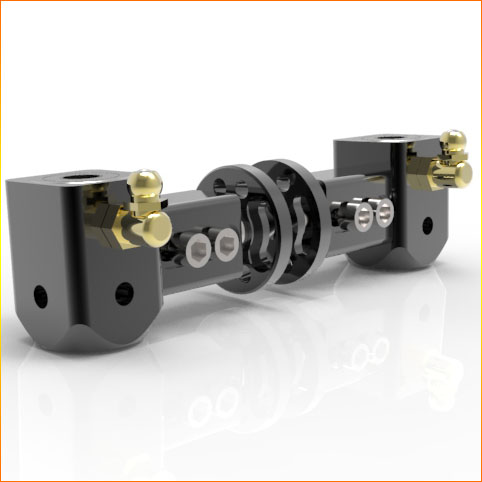

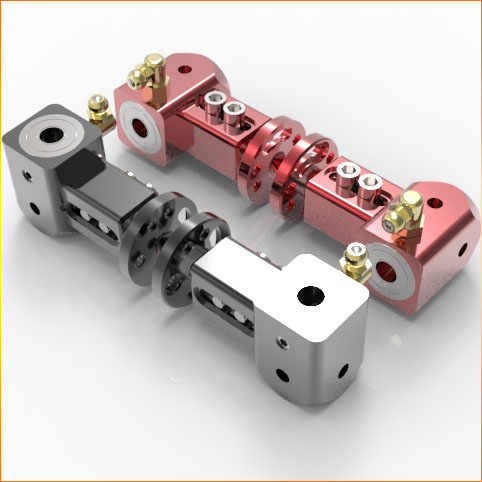

| [Product Version] | CST-2H Stuffing Tube Adaptor |
| [Product Weight] | 155 Grams |
| [Brief Description] | Installing the stuffing tube through the large scaled catamaran with twin motors set up side by side can be difficult and messy – drilling and elongating the hole, adjusting the tube holder angles after mounted, and bending the stuffing tube to matching the motor drive shaft. Even thought you roughly set up everything in place after countless hours dedicated, then the adjustment and maintenance would be another part of difficulty.
The CST-2H Stuffing Tube Adaptor is the solution key to simplify and effectively solve this long standing challenge, it is CNC engineering construction from top quality T6 aluminum and anodized in both Brilliant Red and Jet Black color for your option, it has an exclusive deign of detachable adjustment block that has built-in front bearing for the ultra-smooth flex shaft performance and it also equips with a 9.1mm diameter receptacles with secure nuts to easily accept and hold firmly of a 9mm stuffing tube in exactly the right place for the flex shaft to slip precisely into the output shaft of the electric motor or gas gear box, the billet mounting base allows you to rotation either direction 15 degrees for the precisely angle to align between flexible shaft and motor drive shaft whilst the stuffing tube adjustment block allows the horizontal adjustment in total distance range of 8mm for the same purpose, as the misalignment causes heat, wear and loss of performance, and risks premature failure of the flex shaft. This clever new product fits on both side of your engine rail, and efficiently supports the stuffing tube with a very smart appearance that includes an integral grease nipple installed on the top of stuffing tube block for convenience injecting the grease to keep your shaft spinning cool and free all day, and it works great, and it works even better! We also have innovative design of detachable oil-cup- Lubricator-X that works seamlessly with the CST-2H and it is available for sale separately in our website. |

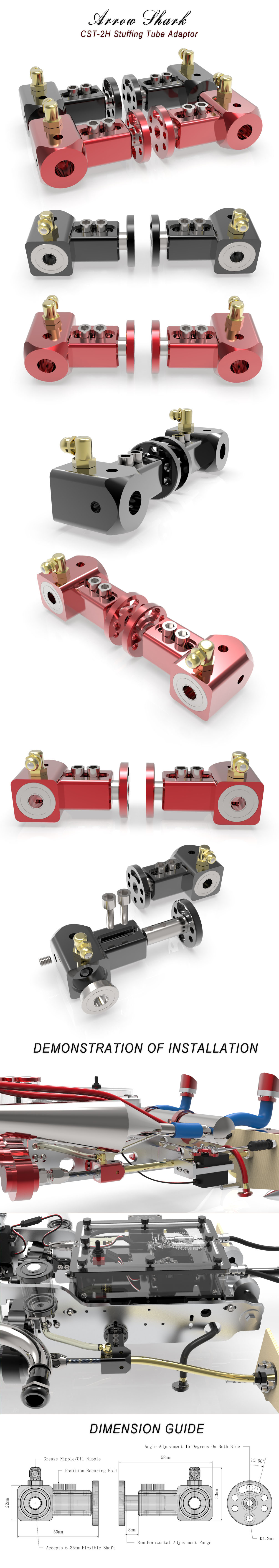

| [Product Dimension] | Please check the dimension above for the detail. |
