| [Manufacturer] | Arrow Shark |
| [Product Version] | WGT-2C Gear Box |
| [Product Weight] | 1570 Grams |
| [Product Dimension] | Please check the dimension pictures above for the detail. |

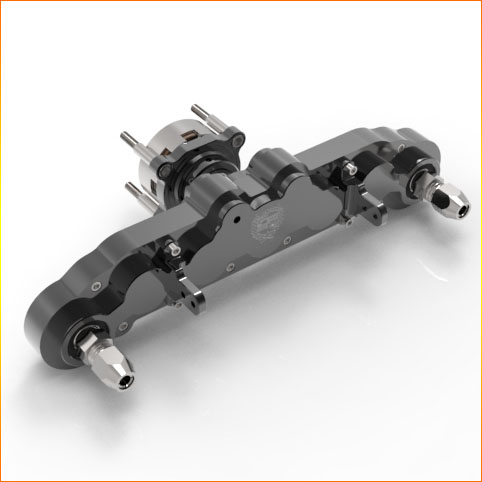

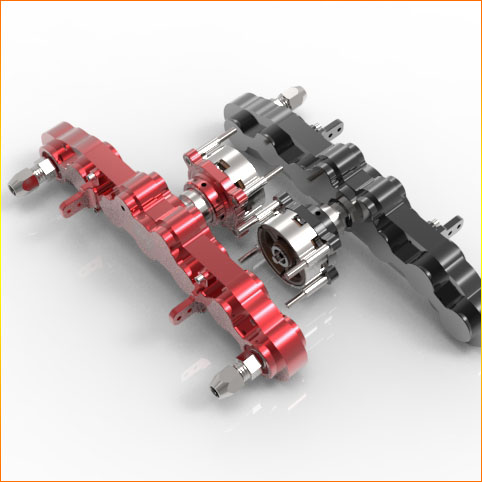

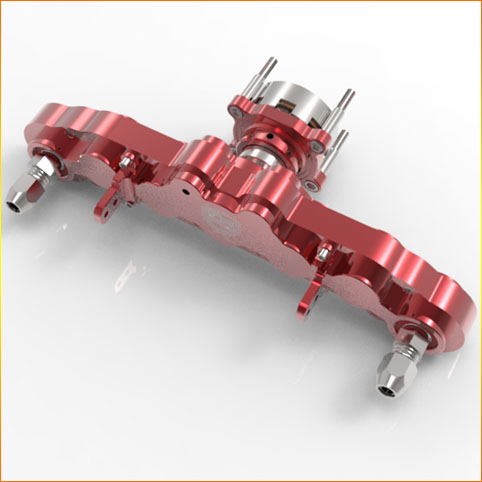

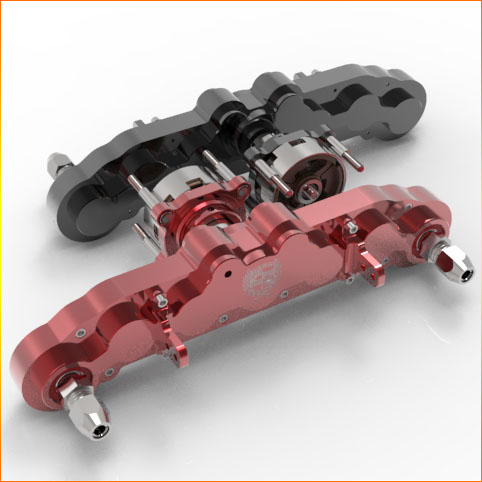

| [Brief Description] | WGT-2C Gear Box is a unique combination of WGT-1C gear box and our non-spring clutch V3, this exclusive integrated design not only save the room in your boat, also improve the performance and appearance. This superlative design combination was specially developed to suit the large scaled catamaran hull to implement the set up of one engine controls with two counter-rotating drives, as this set up for the catamaran application has been a long-standing technical challenge and yet been resolved. The WGT-2C gear box is the perfect solution for it.

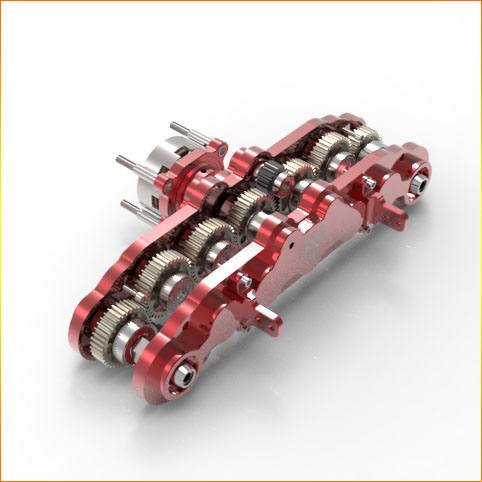

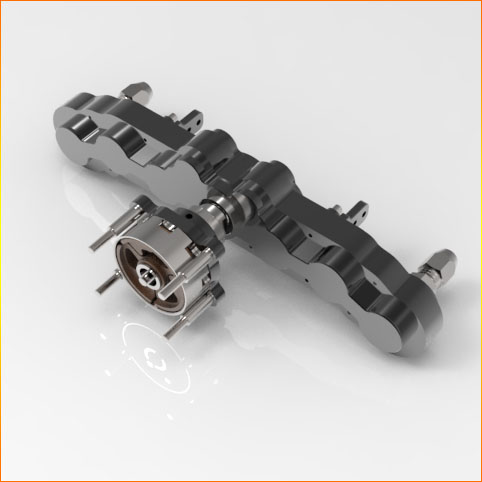

The main components of WGT-2C gear box are precision-engineered and manufactured with up-to-date CNC technology, it has a shinny external finish and anodized in brilliant red and Jet Black. The internal was precisely machined to remove any surplus metal to reduce the weight and maximize the free room for storing lubrication oil. The creative design of output collet shaft integrates both gear drive shaft and flexible shaft collet, this one piece design shortens total length of the output shafts and enable WGT-2C Gear Box to be installed with smaller hulls, the two output shaft collets will accept any 1/4 inches (6.35mm) diameter flexible shaft. The detachable non-spring V3 clutch system offers significantly improved performance, the design of clutch shoe with three engagement claws minimize any possible slippage, and it was made of harden spring steel for ultimate flexibility operation, the shinny chromed clutch shoe is not only for the purpose of decoration of the whole kit, it also offers self-center installation and remarkable performance by the total three heavy-duty ball bearings supports, The gears inside the box has lighten hollowing out design and manufactured with technology of compacting process of powder metallurgy the same technology used for gears in full size automotive transmissions, these gears offers more rigidity and much lighter in weight compare to the machine and harden gears, and these gears were supported by total 16 heavy-duty ball bearings via the harden drive shafts, this results in ultra smooth operation and enable to handle any gas or electric motor over 15HP with up to 25000RPM+ without failure. The WGT-2C gear box kit will work with any gas marine engine available in the market including Arrow Shark, Zenoah, RCMK (single or twin), QD, CY or clone engines in either stock or modified versions, and it can be installed to any catamaran hull from 60 inches up to 75 inches, please double check the dimension picture above for more detail and make sure it suits your engine or hull application before placing the order. Please Note: The Gear Box will be shipped to you without pre-filling the lubrication oil, you will need to fill the lubrication oil after you receive it. Any brand of 4 stoke oil or gear oil will work. |
100%
NAN%
NAN%
