| [Manufacturer] | Arrow Shark |
| [Order Information] | The Hi-Val Package series will be sold as custom build to order, therefore, we only accept the payment via bank wire transfer for these package orders, and we do not accept the return or exchanges for the custom orders because the international express shipping cost for the packages are very expensive, all the products in the package will be subjected to strict quality control and well packing before shipping, however, if in any case there is any part gets damage during the transportation, we will send the free replacements to make the product works, and we do offer worldwide free shipping for the Hi-Val Package series orders and replacement parts. |
| [Kit Version] | Jet X30- Gas Package |
| [Brief Description] | Hi-Val Packages represents the Arrow Shark's latest RC Marine technology and the top line hardware products that we have available, these luxury hardware packages were carefully selected to suit various gas power RC Boat applications, it offers many options in both budget and performance to meet your request, every single product in the package shows innovative design from Arrow Shark, and every detail reveals how much attention and time we have dedicated to make them remarkable! They are not only delivers the most stunning appearance of mechanical engineering to enhance the value of the RC boat projects that you are building, it also offers the most clean and tidy installation available to-date in the RC boat industry.
The Jet X30 hardware package was specially developed to work with the jet power hulls that available in the market, the billet construction of Ultra-Jet drive in the package will suit most of large scale jet hulls and in both gas or electric power format, the X-30 Marine engine associate with the Formula-S outboard pipe set up efficiently push the power out of the engine delivers outstanding performance, the most revolutionary design-fully adjustable smart billet engine rail allows you to move the complete rails with all hardware installed in and out of your hull for engine adjustment or maintenance, the rails was squarely machined from 6mm thickness T6 aluminum with all the thread holes tapped for the hardware to be accurate installed, it is far stronger and durable compare to the traditional wooden rails. The Jet X-30 gas package will suit for any Jet hull from 48 inches up to 60 Inches and delivers exceptional sport performance and the stunning sense of reality appearance for any projects that it associated with! please check the information above for the dimension detail of the package and make sure it works for your hull before placing the order. |

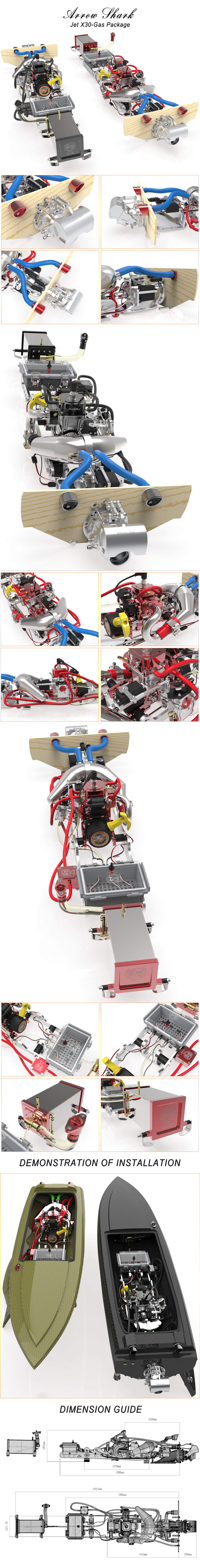

| [Package Contents] | Everything shows in the picture will include in the package. |
| [Transom Plate] | We offer custom laser cut transom plate without additional charge, as every boat's transom shape and size are different, so, please send us the CAD drawing of your boat transom dimension, so, we can make it and ship it with your order. |
| [Engine Rail] | Billet Smart Engine Rail Kit- Jet Version |
| [Engine] | X-30 Marine Engine (Pro Version) |
| [Exhaust System] | Formula-S Formula Pipe Kit Center Billet Mount
Outboard Custom Header Billet Exhaust Outlet Kit & Connection Tube |
| [Drive System] | Billet Ultra-Jet (Gas Version) |
| [Propeller] | 50mm Copper Impeller |
| [Drive Accessories] | X-Pump with Connection tubes
Drive Shaft |
| [Gas Tank] | Mirror 1000 Gas Tank Kit & CNC Refueling port |
| [Radio Box & Parts] | E-Box with Receiver Switch
Metal Wire Connections 3mm steel push-rods for steering and draw back cover. Billet Servo Arm 25KG Metal Gear Steering Servo x1 20KG Metal Gear Draw Back Control Servo x1 15KG Meter Gear Throttle Servo x1 |
| [Building Accessories] | Center Hatch Latch x 1, Bilge Water Pick Up x2,
Billet Water Drainer x2, Water Tube x5 Meter Gas Tube 1 Meter, Hull Air Outlet Plates x4, All Installation Bolts&Nuts. |
| [Product Dimension] | Please check the dimension picture above for the detail. |
| [Product Weight] | 9.5KG |
