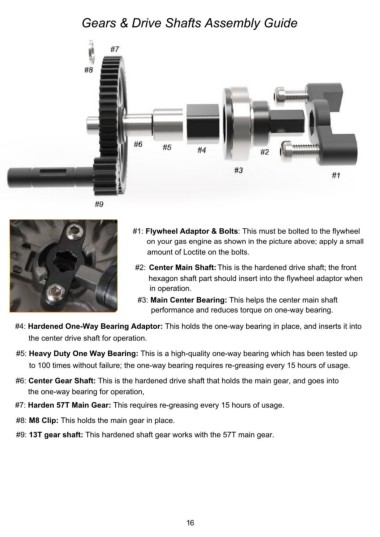

Gears & Drive Shafts Assembly Guide

#1: Flywheel Adaptor & Bolts: This must be bolted to the flywheel
on your gas engine as shown in the picture above; apply a small
amount of Loctite on the bolts.

#2: Center Main Shaft: This is the hardened drive shaft; the front
hexagon shaft part should insert into the flywheel adaptor when
in operation.
#3: Main Center Bearing: This helps the center main shaft
performance and reduces torque on one-way bearing.

#4: Hardened One-Way Bearing Adaptor: This holds the one-way bearing in place, and inserts it into
the center drive shaft for operation.

#5: Heavy Duty One Way Bearing: This is a high-quality one-way bearing which has been tested up

to 100 times without failure; the one-way bearing requires re-greasing every 15 hours of usage.

#6: Center Gear Shaft: This is the hardened drive shaft that holds the main gear, and goes into
the one-way bearing for operation,
#7: Harden 57T Main Gear: This requires re-greasing every 15 hours of usage.

#8: M8 Clip: This holds the main gear in place.
#9: 13T gear shaft: This hardened shaft gear works with the 57T main gear.
