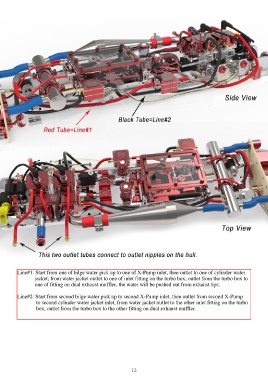

X-60 Cooling tubes Connection Guide
Line#1: Start from one of bilge water pick up to one of X-Pump inlet, then outlet to one of cylinder water
jacket, from water jacket outlet to one of inlet fitting on the turbo box, outlet from the turbo box to
one of fitting on dual exhaust muffler, the water will be pushed out from exhaust tips.
Line#2: Start from second bilge water pick up to second X-Pump inlet, then outlet from second X-Pump
to second cylinder water jacket inlet, from water jacket outlet to the other inlet fitting on the turbo
box, outlet from the turbo box to the other fitting on dual exhaust muffler.
