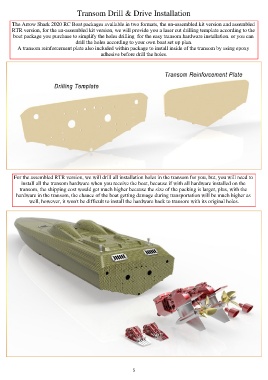

Transom Drill & Drive Installation

The Arrow Shark 2020 RC Boat packages available in two formats, the un-assembled kit version and assembled
RTR version, for the un-assembled kit version, we will provide you a laser cut drilling template according to the
boat package you purchase to simplify the holes drilling for the easy transom hardware installation. or you can
drill the holes according to your own boat set up plan.
A transom reinforcement plate also included within package to install inside of the transom by using epoxy
adhesive before drill the holes.

For the assembled RTR version, we will drill all installation holes in the transom for you, but, you will need to
install all the transom hardware when you receive the boat, because if with all hardware installed on the
transom, the shipping cost would get much higher because the size of the packing is larger, plus, with the
hardware in the transom, the chance of the boat getting damage during transportation will be much higher as
well, however, it won't be difficult to install the hardware back to transom with its original holes.

5
