Page 2 - Arrow Shark M8-Classics Owner Manual
P. 2

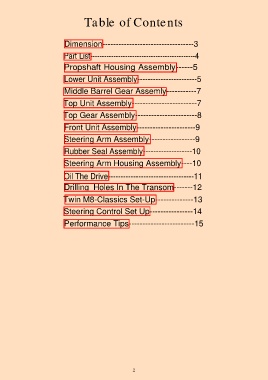

Table of Contents
Dimension----------------------------------3
Part List---------------------------------------------4
Propshaft Housing Assembly------5
Lower Unit Assembly-----------------------5
Middle Barrel Gear Assemly-----------7
Top Unit Assembly------------------------7
Top Gear Assembly-----------------------8
Front Unit Assembly----------------------9
Steering Arm Assembly-----------------9
Rubber Seal Assembly-------------------10
Steering Arm Housing Assembly----10
Oil The Drive----------------------------------11
Drilling Holes In The Transom-------12
Twin M8-Classics Set-Up--------------13
Steering Control Set Up----------------14
Performance Tips------------------------15
2
