[Brief Description] | Hi-Val Packages represent Arrow Shark’s latest RC Marine technology and the top line hardware products we have available. These luxury hardware packages are carefully selected to suit various gas power RC boat applications. It offers many options in both budget and performance to meet your request. Every single product in the package shows innovative design from Arrow Shark, and every detail reveals how much attention and time we have dedicated to make them remarkable! They not only deliver the most stunning appearance in mechanical engineering, enhancing the value of your RC boat projects, it also offers the most clean and tidy installation available to date in the RC boat industry.
In addition to the Hi-Val gas power version packages that we have already released, we now proudly release our electric power Hi-Val packages to our worldwide RC Boat enthusiasts, passionate in electric power RC boat racing! The Hi-Val Electric Power packages will come with everything you need, except the hull, electric motor, ESC and LIPO battery. Therefore, you will have a wide range of choices when selecting the mentioned parts from your preferred manufacturers, which will work with our outstanding hardware and drives. In order to get optimum performance out of our hardware combination, we recommend you to use a hull size between 55 to 70 inches and a diameter 56 series brushless electric motor from sizes 5694 to 56114, which our billet all-in-one elector motor mount was designed for. The 56 series motor will fit without needing any modifications. We also have developed a billet battery cooling pad for the LIPO batteries that possesses the ability of holding up to two 6S LIPO batteries, delivering excellent real time water cooling for your batteries during full speed operations. For the ESC (electric speed control), we recommend you to use 200A-300A water cooling version, and work with 8S to 12S batteries. Our smart billet rail and the battery cooling pad is fully position adjustable, offering great advantages for your boat CG position fine-tune. We also offer an upgraded version of the smart rail made of carbon fiber instead of billet for even light and stronger set up! |
[Electric Motor] | Recommend to use 5694-56114 Brushless Motor |
[ESC] | Recommend to use water cool 200A -300A |
[Battery ] | Recommend to use 8S-12S |
[Motor Mount ] | Suits for 5694-56114 Series Brushless Motor |
[Engine Rail] | Smart Billet Rail Kit-Mono-E |
[Kit Version] | Excutive Edition-Mono E Package |
[Gear Box] | GTM-1V Gear Box & Connections |
[Drive System] | M8 V2-Collector Edition Out-drivex2
Scale Tab x1 Set |
[Prop] | AS7818/5 Mod prop Left&Right |
[Drive Accessories] | Dual Out T- Bar H2V
Lubricate-X Oil Cup x2 Billet Battery Cooling Pad Stuffing Tube x2 (each 400mm in length) Flexible X600L x1 (600mm in length) Flexible X600Rx1 (600mm in length) |

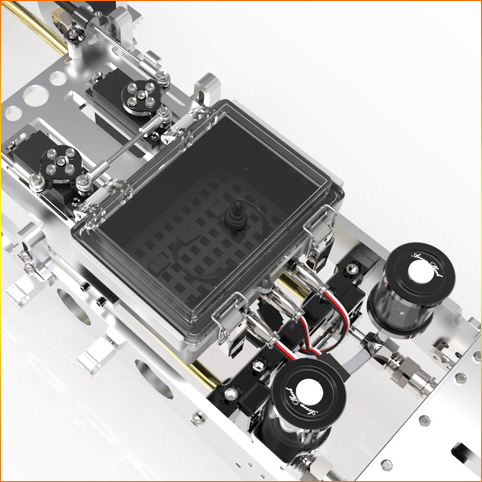

[Radio Box & Parts] | Billet E-Station Kit
Metal Wire Connections Soft Cable Adaptor CNC Servo Arm Tie-bar Steering Cable & Sleeve 35KG Metal Gear Steering Servo x2 |
[Building Accessories] | Bilge Water Pick Up x4,
Water Outlet x4 Water Tube x5 Meter, All Installation Bolts&Nuts. |
[Product Weight] | Approximate 7.5KG |
