| [Brief Description] | The high demand and increasing questions regarding the electric power boats from our worldwide customers now receive our response! We are extremely proud to release our electric power ARTR packages in 2021!
After months of designing, developing and manufacturing for the precise electric power boat set up, we now have everything ready to build your high performance electric power boats in ARTR version. All you need to provide is your preferred electric motor, ESC and batteries from your favorite factories and fit them into the boat that we will build for you. The billet electric motor mount we developed will be best fit for a diameter of 56mm and electric brushless motor between 5694 to 56114. The billet motor mount is an all-in-one design which is integrative with ESC mounting on the top and is fully adjustable in 10mm to suit the 56mm size motor length from 94mm to 114mm. We recommend you to use 200A-300A ESC in water cooling version to work with 56 series brushless motors for optimum performance. We also have developed a billet battery cooling pad for the LIPO batteries that has the ability of holding up to four of 6S LIPO batteries and delivers excellent real time water cooling for your batteries during full speed operations. The LIPO batteries are recommended to be 8S to 12S to gain peak performance from the 56 series brushless motor and the recommended ESC. Our smart billet rail and the battery cooling pad is fully position adjustable, which offers great advantages for your boat CG position fine-tune. We also offer an upgraded version of the smart rail made of carbon fiber instead of billet for even light and stronger set up! With the supplying of our latest RC marine technology that blends with our luxury hardware and precise space calculations, you will not only have the most flexible and tidy assembly of your RC boat in this industry, you will also have a remarkable performance racing beast to add to your collection. For 2023, we have released our E-power premium package for all of Arrow Shark ARTR boat line, and we offer free installation with free necessary accessories to make your boat truly ready to run, all you need is to provide the boat with the batteries that require, then, you will be ready to race! |
| [Purchase Info] | This Product is custom build to order, before you place the order, please contact us first for the detail of stock availability, shipping cost to your country, and the waiting time, we only take payment via bank wire transfer for all custom orders, we will email you our bank account information after you confirm the order, and your order will only be processed after the full payment is received. |
| [About Radio System] | Please note that all of the Arrow Shark 2020 RTR boats or Kits don’t come with transmitter and receiver, you will need to provide your own prefer radio system. |
| [Electric Motor] | (Not Included)- Recommend to use 5694-56114 Brushless Motor |
| [ESC] | (Not Included)- Recommend to use water cool 200A -300A |
| [Battery ] | (Not Included)- Recommend to use 8S-12S |
| [Motor Mount ] | Suits for 5694-56114 Series Brushless Motor |

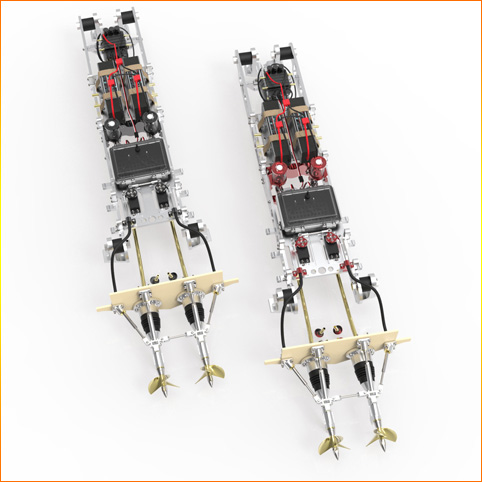

| [Engine Rail] | Smart Billet Rail Kit-Mono-E |
| [Kit Version] | Knight Edition Electric ARTR Package |

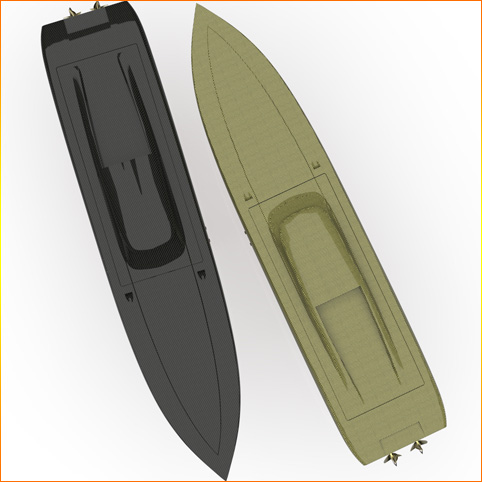

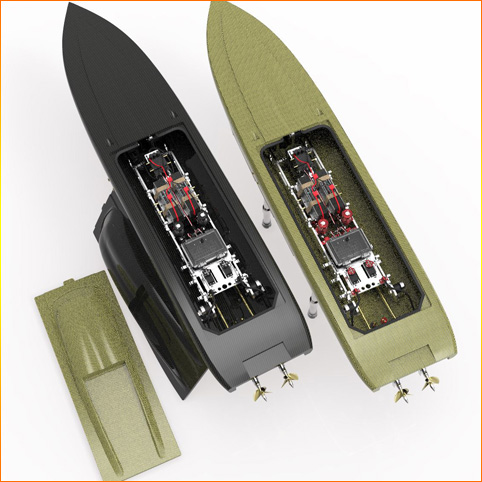

| [Hull] | Marauder SV60 Hull ( Black Carbon Fiber or Yellow Kevlar) |
| [Gear Box] | GTM-1V Gear Box & Connections |

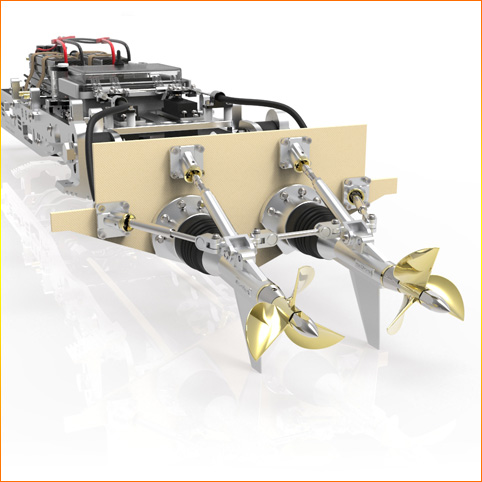

| [Drive System] | Blade-X Surface Drive (Twin Set Up)
|
| [Prop] | AS6717/3 Mod prop Left&Right |
| [Drive Accessories] | Dual Out T- Bar H2V
Lubricate-X Oil Cup x2 Billet Battery Cooling Pad Stuffing Tube x2 (each 400mm in length) Flexible X600L x1 (600mm in length) Flexible X600Rx1 (600mm in length) |
| [Radio Box & Parts] | Billet E-Station Kit
Metal Wire Connections Soft Cable Adaptor CNC Servo Arm Tie-bar Steering Cable & Sleeve 20KG Metal Gear Steering Servo x2 |
| [Building Accessories] | Water Proof Seal Tape x1 roll,
Bilge Water Pick Up x4, Water Outlet x4 Water Tube x5 Meter, All Installation Bolts&Nuts. |

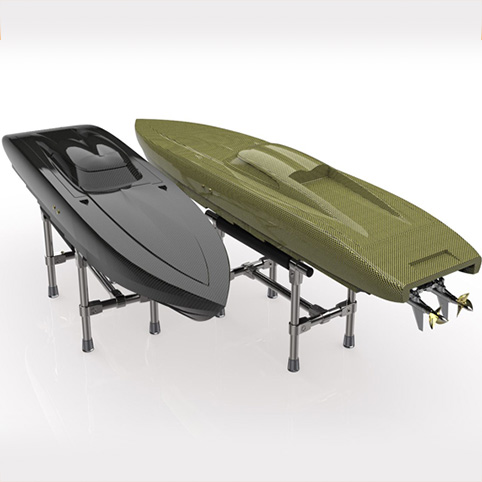

| [Boat Stand] | Heavy Duty Mono Hull Stand |

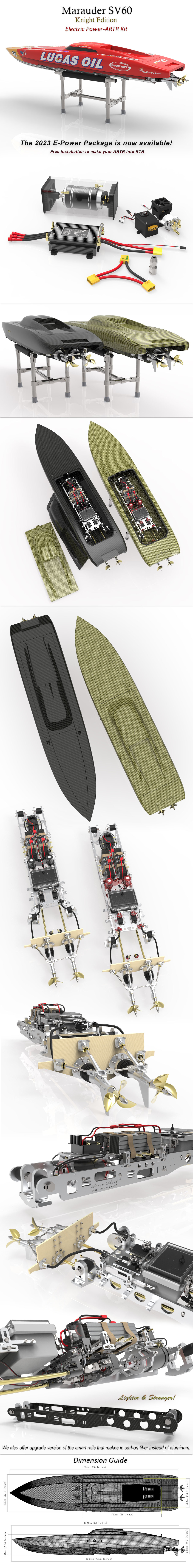

| [Product Dimension] | Please check drawing picture above for the detail. |
| [Packing Dimension] | Length: 1600 Width: 435mm High: 320mm |
| [Product Weight] | Approximate 12KG |
| [Shipping Weight] | 45KG (This weight is converted from Packing Dimension) |
100%
NAN%
NAN%
The shipping costs quoted are already 30% discounted and only available for the countries below: USA, Canada, UK, Australia, Italy, France, Germany, Netherlands, if your country is not in the list, please contact us for the shipping quote.
