| [Manufacturer] | Arrow Shark |
| [Product Version] | Smart Billet Rail-Jet |
| [Product Weight] | 1180 Grams |
| [Brief Description] | Arrow Shark 2020 smart billet rail series of Jet Version rail is specifically designed to work with Arrow Shark 2020 Jet hull-The Pilot RX55, therefore, it might not compatible with the jet hulls available in the market, so, please check the dimensions we provided to make sure whether or not it will work with your hull application before making the purchase.

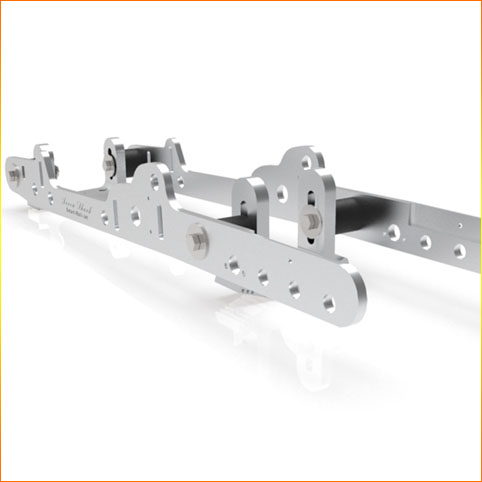

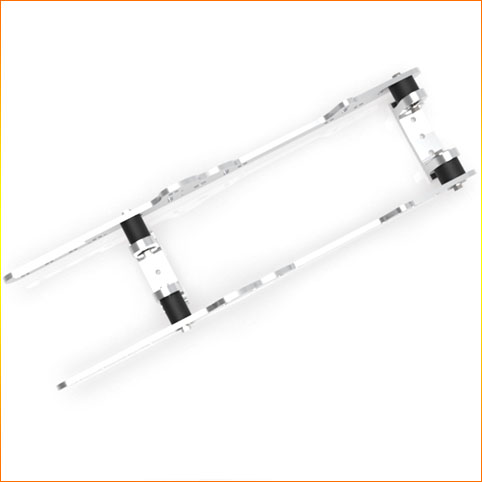

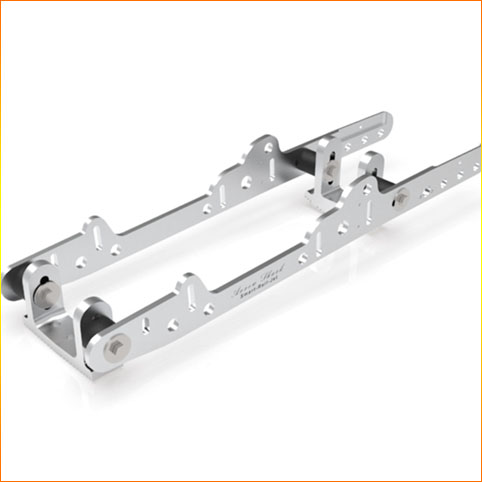

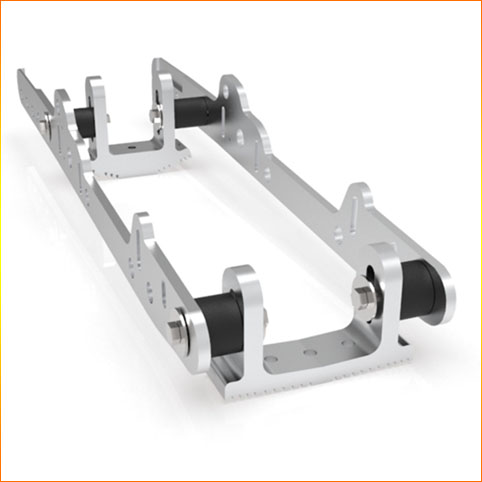

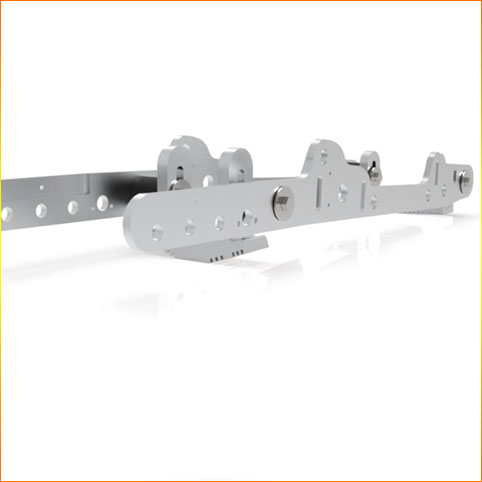

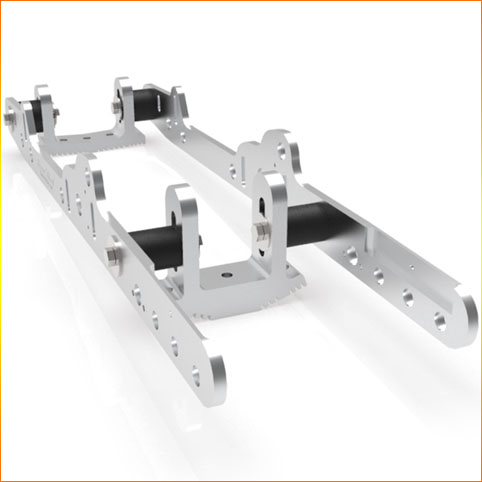

The Jet Version rail is designed to work with both single cylinder engine and twin inline engines, it has flexible design of mounting pattern available within the rail suiting for both version engines, there are two versions of billet base come with the Jet version rail, the Mono version + Cat version one of each, the mono version “V” base is for the installation on bow area of the hull, whilst the Cat version “flat” base to be installed on the near transom area as the most jet boat hull has flat bottom on the stern of the hull. The Smart Rails was CNC machined from T6 aluminum with precisely compact structure. The rail base has creative design of reinforcement grooves for storing the Epoxy AB glue that efficiently helps sticking the billet bases to the bottom of the hull firmly for the stable operation. There are four of heavy duty isolation rubbers in diameter of 30mm line up between the billet rails and billet bases to absorb the leftover vibrations from the engine before that transfer to the hull to improve the positive power conveying to reach the superlative performance. The threads and adjusting slots in the rails were precisely pre-drilled for the accurate hardware and engine installation, the billet rails are fully adjustable in both direction of the horizontal and vertical for the convenience setting or adjusting of Center of Gravity of your boat. The exclusive function of the smart billet rail is enabling you to move the complete rails with all hardware installed in and out of the hull for adjustment or maintenance without any hassle, The both rigidity of material and function of user-friendly design of the billet rails are the traditional wooden engine rail couldn't be contrasted with. |

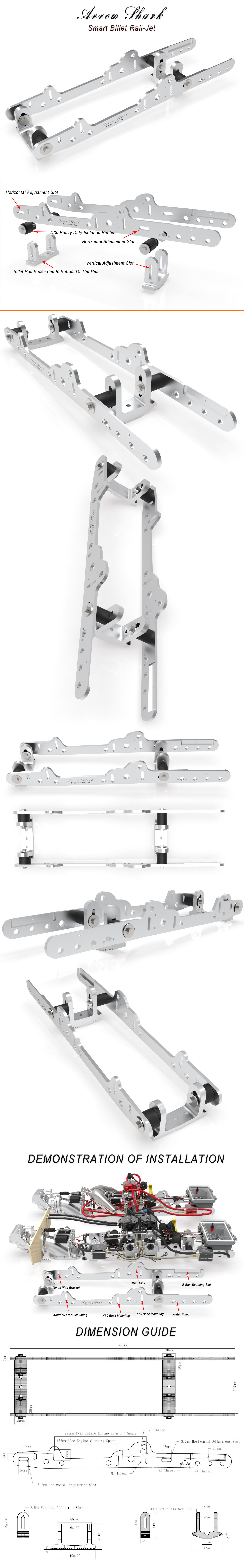

| [Product Dimension] | Please check the dimension picture above for the detail. |
