| [Manufacturer] | Arrow Shark |
| [Purchase Info] | This Product is custom build to order, before you place the order, please contact us first for the detail of stock availability, shipping cost to your country, and the waiting time, we only take payment via bank wire transfer for all custom orders, we will email you our bank account information after you confirm the order, and your order will only be processed after the full payment is received. |

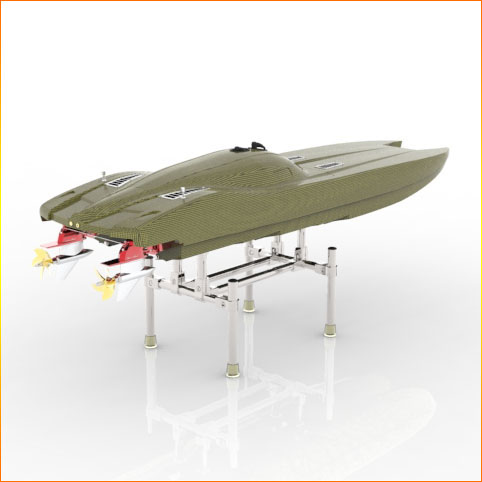

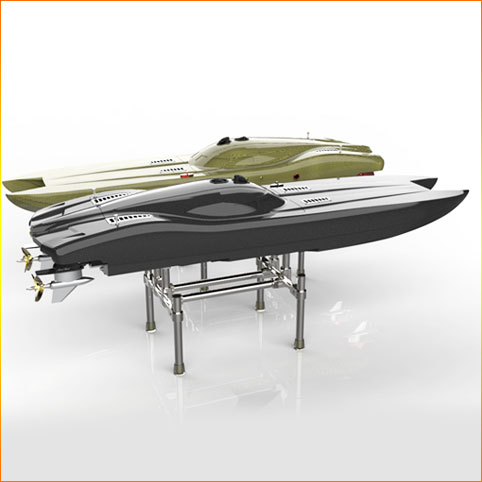

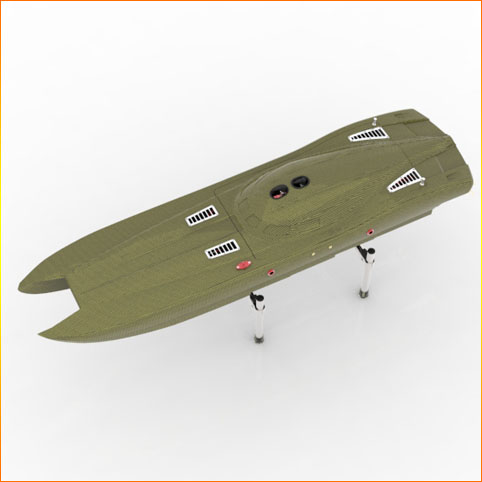

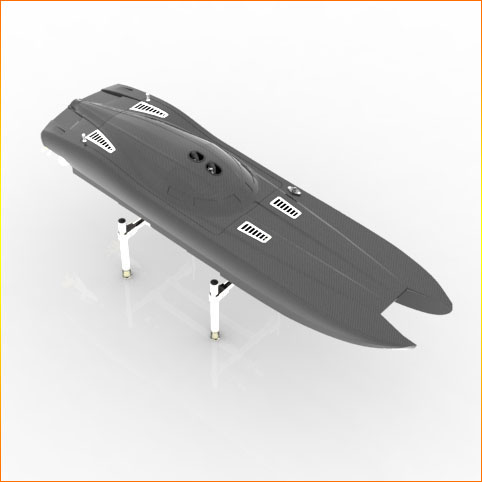

| [Brief Description] | “Few boats can even come close to the completed design, look and performance of the MTI 52 Black Diamond. The details throughout the boat are true art.” Today, Arrow Shark is extremely proud to bring this incredibly designed catamaran boat to the radio control racing boat collection. This perfect scale replica hull design was completed true to detail with a carbon fiber material to make this monster truly unbeatable!
The X60-Executive Package is well selected ideal set up for GX58, it comes everything the best from Arrow Shark, such as the M8 Scale out-drive, X-60 twin inline marine engine, custom exhaust system, smart billet gas tank or billet water pump, especially the WGT 2C gear box which was specially designed to work for the catamaran hull applications, to set up one engine with counter-rotating twin drives in a scale catamaran hull has been a long-standing challenge and not yet been solved, most twin drive set up on catamaran hull goes with two engine side by side, but, that set up will not be able to control the RPM identically from each engine, and this innovative design of WGT 2C gear box from Arrow Shark is the solution key to solve this technical issue perfectly! The package also includes the most revolutionary design product from Arrow Shark-The fully adjustable smart billet engine rail- which was constructed and machined from T6 aluminum, the rails has compact design with precisely position of thread holes prepared for each hardware to be accurate installed, the exclusive design of the smart billet rail enable you to move the complete rails with all hardware installed in and out of the hull for adjustment or maintenance without hassle, whilst offers the convenience for re-setting and adjusting the CG position inside the hull. The both rigidity of material and function of user-friendly design of the billet engine rail are the traditional wooden engine rail couldn't be contrasted with. A part from the top line of Arrow Shark billet Hardware for the GX58, the latest released high performance X-60 inline marine engine making the GX58 a real racing beast! The Arrow Shark Black Diamond GX58 executive version will not only handle well for any water condition, it also be an eyes stopper for anyone who see it! |
| [Kit Version & Contents] | Executive Version X-60 |
| [About Radio System] | Please note that all of the Arrow Shark 2020 RTR boats or Kits don’t come with transmitter and receiver, you will need to provide your own prefer radio system. |
| [Hull] | Black Diamond GX58 Hull ( Black Carbon Fiber or Yellow Kevlar) |
| [Engine Rail] | Billet Smart Engine Rail Kit- Cat -60 Version |
| [Engine] | X-60 Marine Engine |
| [Exhaust System] | Billet Turbo Box & Dual S Outlet |
| [Gear Box] | WGT-2C Gear Box |
| [Drive System] | M8 Classic Version x2 with Tie-Bar |
| [Propeller] | AS7818/5 Mod prop Left & Right |
| [Drive Accessories] | X-Pump kit with connection tubes x2
Lubricator-X Oil Cup x2 CST-2H Tube Holder Set Stuffing Tube x2 Flexible X600L x1 Flexible X600Rx1 |
| [Gas Tank] | Mirror 950 Gas Tank Kit & CNC Refueling port |
| [Radio Box & Parts] | E-Box & Receiver Switch
Metal Wire Connections Smart Billet Servo Arms 3mm Steel Push Rod Transom Push Rod Adaptor 35KG Metal Gear Steering Servo x2 15KG Metal Gear Steering Servo x1 |
| [Building Accesories] | Hatch Latch x 1 set, Bilge Water Pick Up x2,
Billet Water Drainer x2, Water Tube x5 Meter Gas Tube 1 Meter, Hull Air Outlet Plates x4, All Installation Bolts&Nuts. |
| [Boat Stand] | All-Round Boat Stand |

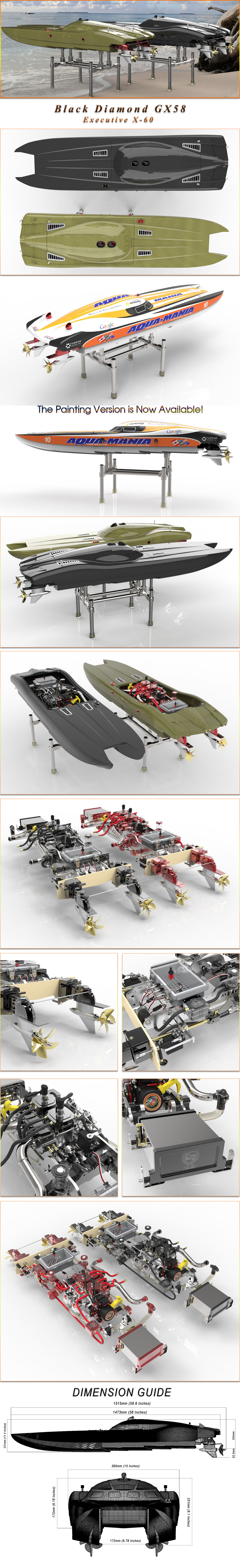

| [Product Dimension] | Please see the product drawing picture above for the detail. |
| [Packing Dimension] | Length:1600mm Width：435mm High: 320mm |
| [Product Weight] | Approximate 19KG |
| [Shipping Weight] | 45KG (this weight is converted from it is dimension) |
| [Assemble Info] | For the Un-assemble kit version, we will pack all parts listed above inside the hull, when customer receives the package, you need to build the boat up either according to our instruction or your own plan
For the RTR assemble version, in order to avoid the boat getting damage during the transportation, we will dis-assembled the transom hardware and package them inside the hull before shipping, therefore, when customer receives the package, it will require you to install the hardware back to transom according to our instruction manual. |
100%
NAN%
NAN%
The shipping costs quoted are already 30% discounted and only available for the countries below: USA, Canada, UK, Australia, Italy, France, Germany, Netherlands, if your country is not in the list, please contact us for the shipping quote.
